Product Details
＋
Features and Benefits
- Integrated Power Indication Meter: A built in net power meter which will display a graphical and numerical representation of the power applied to the cartridge.
- User Programmable PowerSave Mode: The time to enter PowerSave Mode is adjustable from 10-120 minutes.
- Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system. Only after the power line ground has been restored, can the MX-500 be restarted and soldering operations can be resumed.
- Universal Power Supply: Automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
- Compatibility with all MX products: The MX-500 redesign allows full compatibility with existing and previous MX upgrade kits, tip-cartridges, handpieces and accessories.
- Greater process control with SmartHeat® Technology.
- Reduced space requirements.
- Note: Requires 60-100 PSI of Shop Air
System Includes
- Power Supply
- MX-RM3E: Soldering and Rework Handpiece with Cartridge Removal Pad
- WS1: Sleeper Workstand for the RM3E
- MX-DS1: Desoldering Gun with Cartridge Removal Pad
- MX-W5DS: Tip Saver Workstand for the MX-DS1
- MX-RM8E: Desoldering Cord
- MX-DAH4: ESD Air Hose with Fitting
- AC-CB1: Cleaning Brush
- AC-CB2: Tube Cleaning Brush
- MX-DCF1: Chamber Liner and Filter Pack
- AC-TC: Desoldering Tip Cleaner

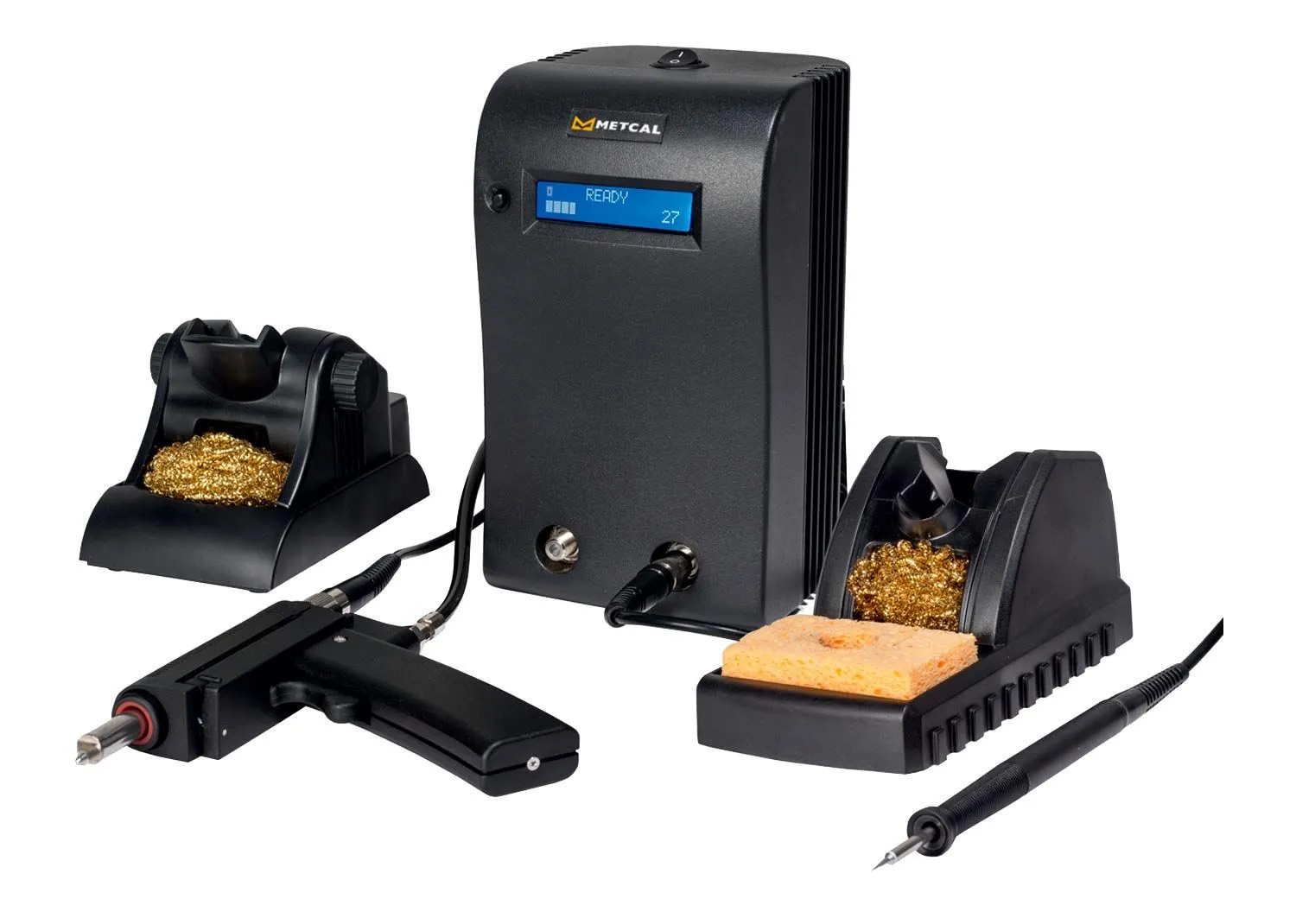

Metcal's MX-500 Soldering and Rework System has been reimagined, adding features and a new look to a bench top icon. The system utilizes SmartHeat® Technology, wherein each cartridge is equipped with a self-regulating heater which 'senses' its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. The tip temperature is determined by the inherent metallurgical properties of the heater; no external adjustment or equipment is required. The MX-500 retains switchable dual port, 40W operation while introducing numerous new features in a new housing.
